Clear PVC film · 260±15gsm

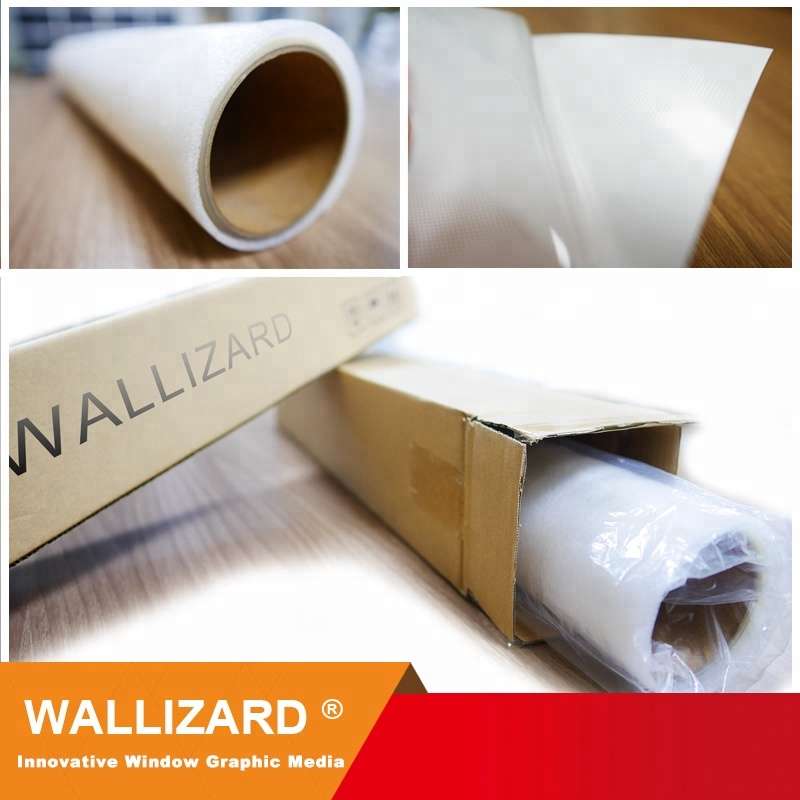

Film rollAdhesion backing, macroPrint sampleFilm rollAdhesion backing, macroPrint sampleFilm rollAdhesion backing, macroPrint sampleSP-PVC120E1C6

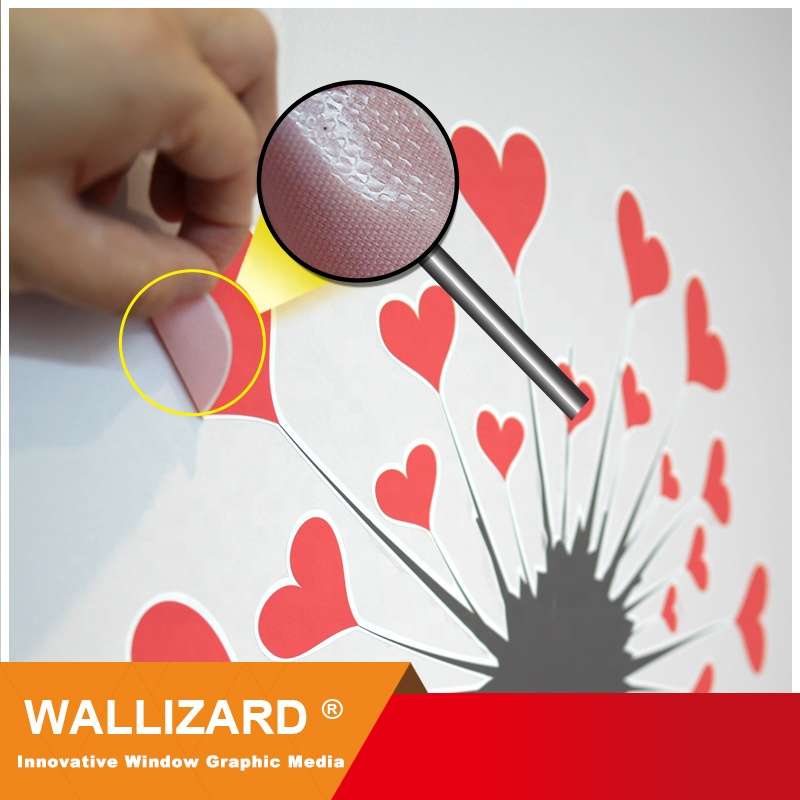

Dot shaped removable adhesive on one side with liner — the dot pattern allows air to escape for a bubble-free application, and the adhesive stays removable for short term indoor use.
Full specifications
All values nominal ± tolerance, measured on standard production lots.
| Model | SP-PVC120E1C6 |
|---|---|
| Base / Surface | Clear PVC film, Clear PVC film |
| Adhesion system | Spider™ Dot Adhesive Film |
| Print compatibility | Eco-solvent, UV Digital, Offset, Latex |
| Film thickness | 120±8 μm |
| Total thickness | 240±14 μm |
| Film weight | 150±9 gsm |
| Total weight | 260±15 gsm |
| 180° peel adhesion | 200-500 g/25mm |
| Release force | <15 g/25mm |
| Release liner | White release paper |
| Elongation at break | >150% |
| Dimensional stability | ≦0.1 in |
| Service temperature | -20~80 ℃ |
| Appearance | Clear |
| Indoor / outdoor | Indoor |
| Shelf life | One year |
Installation
- The application area should be clean and free of dirt.
- Using water to assist applying the material is not necessary and not recommended.
Storage
- Store at temperature conditions of 10～25℃ (50～77℉) and 50% relative humidity.
- We recommended that you always keep this product in its original packaging.
Cautions
- Not recommended for outdoor usage.
- To optimize print results, printer needs to be set for highest print quality.
- Avoid hand oil and dirt comtaminate the dot surface.
- Keep the film flat during application, crease and curing will affect the adhesion persistence.
- Due to different applying surface and environment, we can not guarantee the material will work on every condition. Please always test on applying surface before large scale usage.
Where SP-PVC120E1C6 goes to work
Common questions about SP-PVC120E1C6

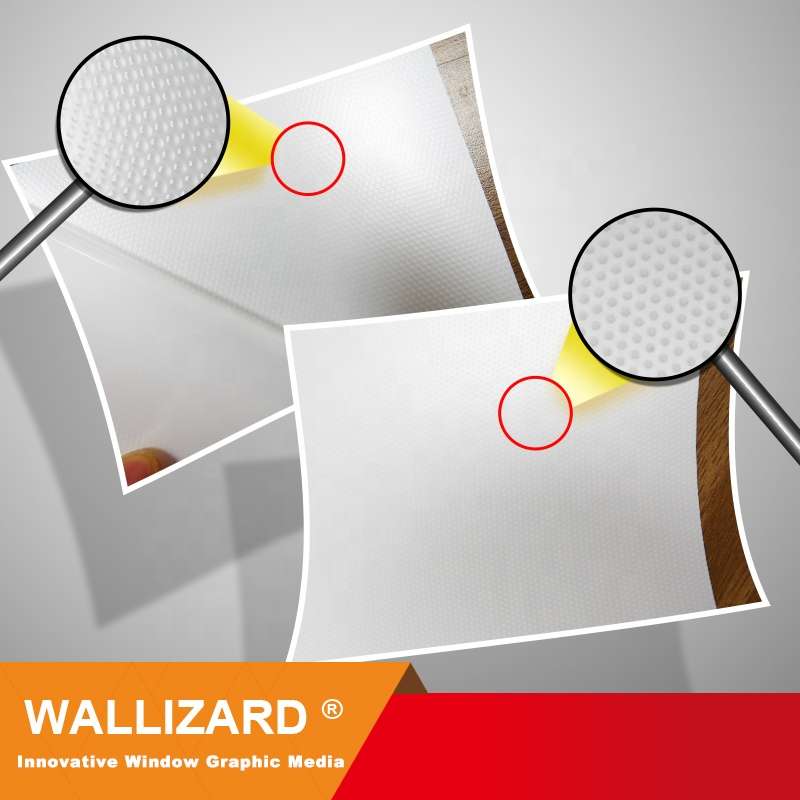

Q1Why does Spider™ film use a dot-pattern adhesive?
Spider™ carries a dot-shaped removable adhesive: the gaps between dots let air escape during application, giving a bubble-free finish without special tools, while the reduced glue contact keeps the film cleanly removable for short-term indoor graphics.
Q2Is Spider™ film removable?
Yes. Spider™ uses a removable dot adhesive designed for short-term indoor applications such as trade shows and seasonal sales — it applies and removes quickly on many kinds of surfaces.
Q3Is Spider™ film PVC-free?
The PET and PP models in the Spider™ series are PVC free, making them an environmentally friendly choice for short-term promotional graphics.
Q4Does Spider™ film need water or professional installation?
No. Clean the surface and apply dry — using water is not necessary and not recommended. The dot adhesive vents air by itself, so installation is easy, quick and bubble-free.
Other models in this series
6 models in total — view the full comparison table →
Not sure this model fits?
Use the guided finder to shortlist models by surface, duration, installation and print system.
Test SP-PVC120E1C6 on your own printer
我们向全球寄送 A4 与卷材样品。告诉我们您的打印机型号与目标表面——工程师将确认兼容性并在一个工作日内报价。
